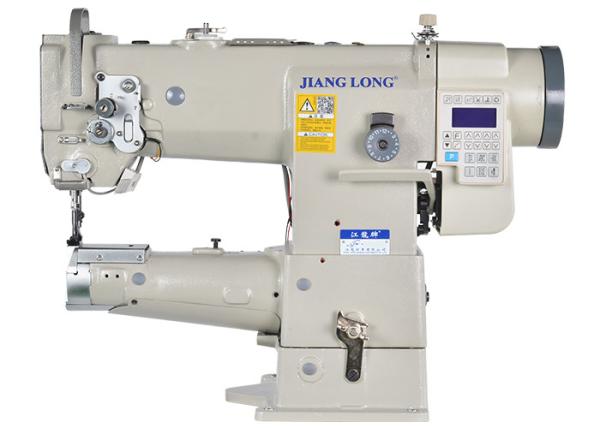

Single Needle Automatic thread trimming Compound Feed Industrial
Sewing Machine
Product introduce
This is a computerized direct-drive sewing machine with patented
design. It adopts Bomax multi-function electric control system and
high-power 750W motor. It has automatic thread trimming, pneumatic
reverse stitching, and pneumatic presser foot lifting functions.
This machine is mainly used for leather, Sewing of thick fabrics
such as luggage.
Product advantage
High-quality automatic thread trimming, pneumatic tire presser
foot, pneumatic reverse stitching, up and down fixed needle,
automatic winding core function, precise selection of parts and
materials, increase the stability and service life of the machine.
Paraneter of machine
| Model | JL-6860DT |
| Number of Needle | Single Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-10.5mm |
| Diameter of Cylinder Bed | 70mm |
| Presser foot lift | 8 mm (by hand) 13 mm (by knee) |
| Needle size | DP*17(21#) |
| Hook | Vertical/Standard hook (26.4mm core) |
| Lubrication | Automatic lubrication |
| Working Space | 250*110mm |
| motor | Servo Direct Drive Motor |
| Mechanical Configuration | Cylinder-bed |
| Feed Mechanism | Compound Feed |
| Dimensions | 65.5*31*60.2cm |
| Color | White |
| N.W | 50KG |
Product details
1. Adjust the stitch length digital dial.
2. The automatic circulating oil supply device is improved on the
basis of traditional manual oil injection. It is equipped with a
high-pressure oil pump to automatically supply oil to all parts of
the machine to achieve free lubrication of various parts, greatly
increase the service life of the machine and reduce parts wear.
3. The function control panel can select the corresponding function
according to the sewing needs.
4. The thread clamp adjusts the tension of the upper thread.
5. Reverse stitch handle, the reverse stitch handle is in a static
state during sewing operation, if you need to reverse stitch, just
press the reverse stitch handle.
FAQ
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing
machine.
|
Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to
us our machine quality is good and use it about two years no change
voice. After you use it, you will more understand our quality. |
Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no
very cheap, in general, quality is better than price. |
Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two
pieces machine to your china agent and exported by yourself. |
Q5. How can I get a quotation? A. First please give us your email address and which machine are
your interesting.
|
