Industrial Cylinder Bed Lock Stitch Double Needle Compound Feed
Sewing Machine
Product introduce
This is a cylindrical double-needle thick material sewing machine
with a large stitch length design and a new adjustable tooth frame.
It increases the sewing power on the basis of the old model. It is
suitable for sewing leather goods, handbags, bags, hats, shoes and
other items. system.
Product advantage
The fully automatic circulating oil supply and lubrication design
greatly reduces the wear of parts and reduces sewing noise. The
10mm large stitch length design makes the stitches of sewing large
items (such as car mats and sofas) beautiful and improves sewing
efficiency. The selection of spare parts is precise, and the new
adjustable bracket is adopted to increase the wear resistance of
the machine and increase the service life of the machine.
Parameter of machine
| Model | JL-1342 |
| Number of Needle | Double Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-9.5mm |
| Diameter of Cylinder Bed | 70mm |
| Presser foot lift | 8 mm (by hand) 13mm (by knee) |
| Needle size | DP*17(21#) |
| Hook | Vertical/Standard hook(26.4mm Core) |
| Lubrication | Automatic lubrication |
| Working Space | 250*110mm |
| motor | Clutch Electric Motor, Electronic Energy-saving Machine |
| Mechanical Configuration | cylinder -bed |
| Feed Mechanism | Compound Feed |
| Dimensions | 58*29*61cm |
| Color | White |
| N.W | 37 KG |
Product details
1. Thread clamp, adjust the tension of the upper thread.

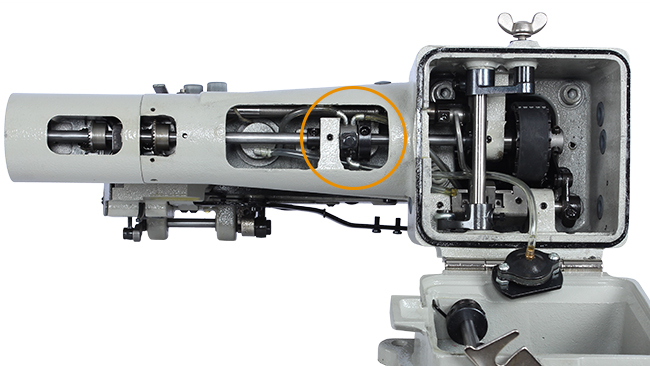

2. Automatic circulating oil supply device, an improved version
based on traditional manual refueling, equipped with a
high-pressure oil pump to automatically supply oil to all parts of
the machine to achieve free lubrication of various parts, greatly
increase the service life of the machine and reduce parts wear.
3. Reverse stitch handle and reverse stitch handle are in a static
state during sewing operation. If you need to reinforce the sewing
material, press the reverse stitch handle.
4. Adjust the stitch length digital dial.
FAQ
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing
machine.
|
Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to
us our machine quality is good and use it about two years no change
voice. After you use it, you will more understand our quality.
|
Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no
very cheap, in general, quality is better than price.
|
Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two
pieces machine to your china agent and exported by yourself.
|
Q5. How can I get a quotation? A. First please give us your email address and which machine are
your interesting.
|
