Cylinder Bed High Speed Walking Foot Compound Feed Lock Stitch
Leather Sewing Machine
Product introduce
This is a sewing machine equipped with an automatic circulating oil
supply and lubrication system. It adopts a small cylindrical sewing
table and an elliptical feeding open thread operation, which can
perform high and low speed sewing with uniform and beautiful
stitches. Optional clutch motor, electronic energy-saving motor
(including fixed needle, adjustable speed). It is a thick leather
sewing machine, mainly for sewing leather products, like real
leather, it can sew very good results.
Product advantages
This is an upgraded version of the JL-244 model machine, This
machine uses high-precision, high-density, and high-wear-resistant
parts to increase the stability and wear resistance of the machine,
making the machine less likely to vibrate greatly during operation,
ensuring smooth feeding and smooth sewing materials, and at the
same time Increase the service life of the machine.
Parameter of machine
| Model | JL-244- 2A |
| Number of Needle | Single Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-8mm |
| Diameter of Cylinder Bed | 47.5mm |
| Presser foot lift | 8 mm (by hand) 12 mm (by knee) |
| Needle size | DP*17 (18#) |
| Hook | Small horizontal hook |
| Lubrication | Automatic lubrication |
| Working Space | 260×103mm |
| motor | Clutch Electric Motor, Electronic Energy-saving Machine |
| Mechanical Configuration | cylinder -bed |
| Feed Mechanism | Compound Feed |
| Dimensions | 57*27*62cm |
| Color | White |
| N.W | 35KG |
Application case
Suitable for all kinds of leather goods, ladies leather bags, car
steering wheel covers, leather garment production, belts, wallets,
etc.
Product details

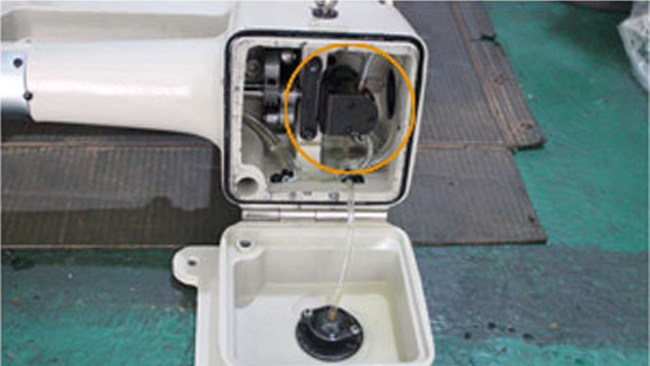

1. The automatic circulating oil supply device is an improved
version based on traditional manual oiling. It is equipped with a
high-pressure oil pump to automatically supply oil to all parts of
the machine to achieve free lubrication of all parts, greatly
increase the service life of the machine and reduce parts wear.
2. The upper and lower transmission is connected to the crank, and
the transmission shaft handle is optimized. The problem of heavy
weight when the upper and lower linkage is reversed, strengthens
the wear resistance of the parts.

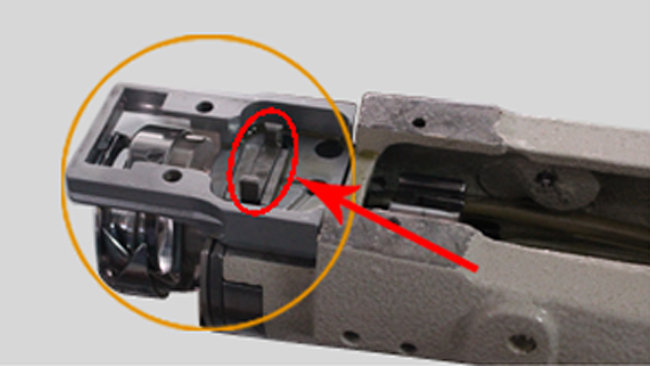

3. The new feeding structure of lifting teeth, the improvement and
optimization of the key feeding technology, due to the new type of
balanced brackets, it solves the problems of unstable feeding, easy
to wear, and easy breakage of the traditional top column lifting
teeth, thus completely solving the needle Disadvantages such as the
length of the pitch and broken needles greatly increase the
aesthetics of the leather stitches.
