Long Arm Cylinder Bed Lockstitch Industrial Compound Feed Sewing
Machine
Product introduce
This is a customized machine, a long-arm large-mouth industrial
sewing machine, suitable for sewing special materials.
Product advantages
The fully automatic circulating oil supply and lubrication design
greatly reduces the wear of parts and reduces sewing noise. Super
10mm large stitch length design, precise selection of parts and
materials, adopting adjustable new tooth frame, durable.
Applications
Suitable for sewing leather goods, handbags, suitcases, hats,
clothing, shoes, etc.
Product parameter
| product name | high speed sewing machine for leather |
| keyword | large working space sewing machine industrial |
| presser foot lift | 8mm (by hand ) 13mm (by knee ) |
| votage | 220V |
| sewing material | Heavy duty |
| Feed Mechanism | compound feed |
Product details
The working space of the machine can be increased, and the working
space can be customized according to requirements. There are
500*110mm, 600*110mm, 800*110mm, 1000*110mm optional.

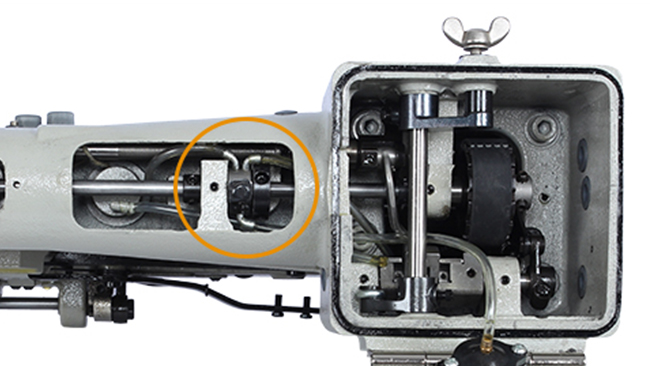

Automatic circulating oil supply device
An improved version based on traditional manual refueling, equipped
with a high-pressure oil pump to automatically supply oil to all
parts of the machine to achieve free lubrication of all parts,
greatly increase the service life of the machine and reduce parts
wear.
Thread tensioner, adjust the tension of the upper thread.
Backstitch handle
The reverse stitching handle is in a static state during sewing
operation. If the sewing material needs to be reinforced, the
sewing material will be fed back when the reverse stitching handle
is pressed down.
Adjust the stitch length digital dial
The digital gauge dial can be adjusted in 1-6 steps. The operator
can easily rotate the dial to achieve the ideal gauge. Turn
clockwise to shorten the gauge, and vice versa.
