Compound Feed 250*110mm 50kg Cylinder Bed Sewing Machine

Ask Lasest Price
Brand Name :	Jianglong
Model Number :	JL-8BDL-2A
Price :	USD 680.89 - 732.36 per set
Payment Terms :	Western Union, T/T, L/C
Supply Ability :	100000 Set per month
Delivery Time :	5-8 Work days

Add to Cart

Product Details
Company Profile

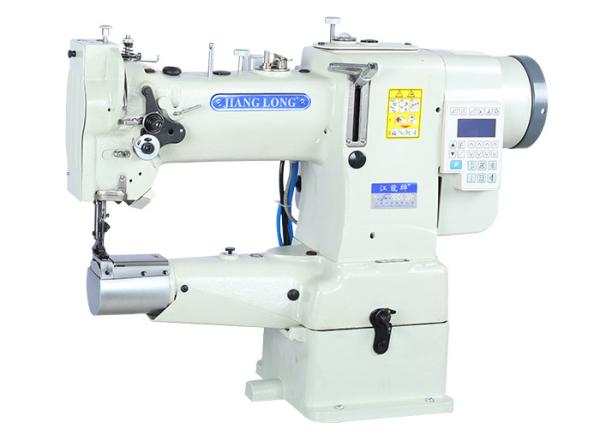

Compound Feed 250*110mm 50kg Cylinder Bed Sewing Machine

Single Needle Large Hook Compound Feed Lockstitch Industrial Sewing Machine

Product introduce

This is a computerized direct-drive large shuttle sewing machine with a vertical large shuttle design. The tip of the shuttle hooks the thread loop while expanding the loop and guiding the thread around the bobbin to form a lock stitch. Compared with the previous small shuttle , The improved large shuttle of this machine does not catch thick thread when sewing, and keeps thin thread, making the operation more stable. Suitable for sewing heavy bags.

Parameter of machine

Model	JL-8BDL-2A
Number of Needle	Single Needle
Max. Sewing Speed	2200(r.p.m)
Max.Stitch Length	0-8mm
Diameter of Cylinder Bed	65mm
Presser foot lift	8 mm (by hand) 14 mm( by knee)
Needle size	DP*17 (21#)
Hook	Large Vertical Hook
Lubrication	Automatic lubrication
Working Space	250*110mm
motor	Servo Direct Drive Motor
Mechanical Configuration	Cylinder-bed
Feed Mechanism	Compound Feed
Dimensions	65.53160.2cm
N.W	50kg
Color	White

Product Case
Suitable for the surrounding operations of heavy bags, suitcases and mattresses

Product details

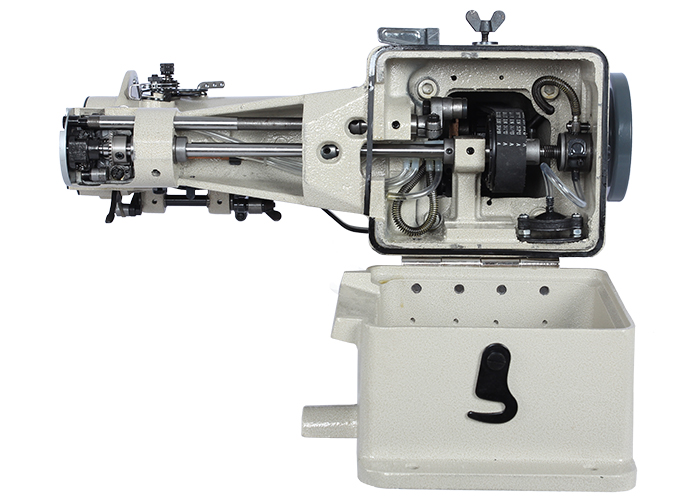

1. Computer direct drive integrated.

2. Automatic oil supply device.

3. Use Powermax servo motor.

4. Presser foot, machine needle, feeding cloth, three synchronous feeding, so that the fabric is not easy to slip and wrinkle.

FAQ

Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.

Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.

Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price.

Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.

Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
